Smart Cutter — FE / FC Series
Magnetic-levitation vacuum pump on a 5.18 m chassis — 80 m/min cut speed on 90 mm compressed ply, with dynamic blade compensation tuned for textile, automotive and intimate-wear cut floors.
- Bed footprint
- 5180 × (3035.5 / 3238.5 / 3441.5) × 2254 mm
- Weight
- 3,600 – 4,200 kg
- Total power
- 26 / 28 kW
- Vacuum pump
- 9 kW magnetic-levitation (per FE90 spec sheet)
FE / FC is positioned for textile-apparel, automotive interior, intimate-wear and denim multi-ply cutting. Per the customer's spec sheet, the line runs a magnetic-levitation vacuum pump and dynamic blade-trajectory compensation. The FE / FC models share one 5180 mm chassis: the FE flagship cuts at 80 m/min on a 90 mm compressed ply, the FC line tunes to 50 m/min for thicker plies.
- Woven and denim fabric
- Knit and intimate-wear textile
- Bovine and synthetic leather (light gauge)
- Automotive interior coverstock
- Cutting floors
- Industrial-material processing
- Batch-production floors
90 mm compressed-ply height
Cuts up to 90 mm of fabric after vacuum compression and adsorption.
9 kW magnetic-levitation pump
Draws just 9 kW yet delivers around 60% more fabric hold-down while cutting pump energy by roughly 30% versus conventional turbine pumps.
Dynamic blade compensation
Monitors the blade path in real time and corrects deviation on the fly, keeping every piece consistent.

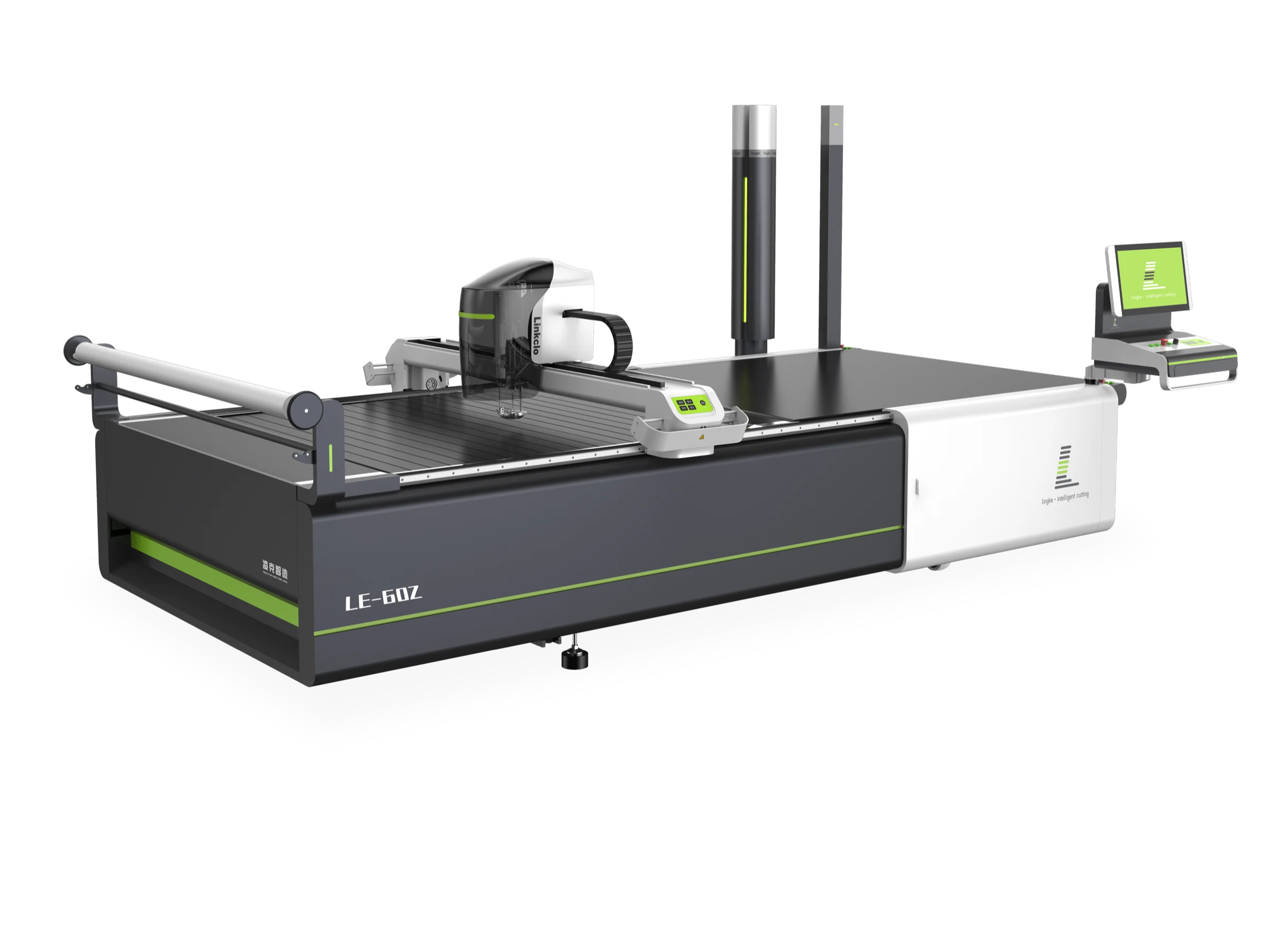

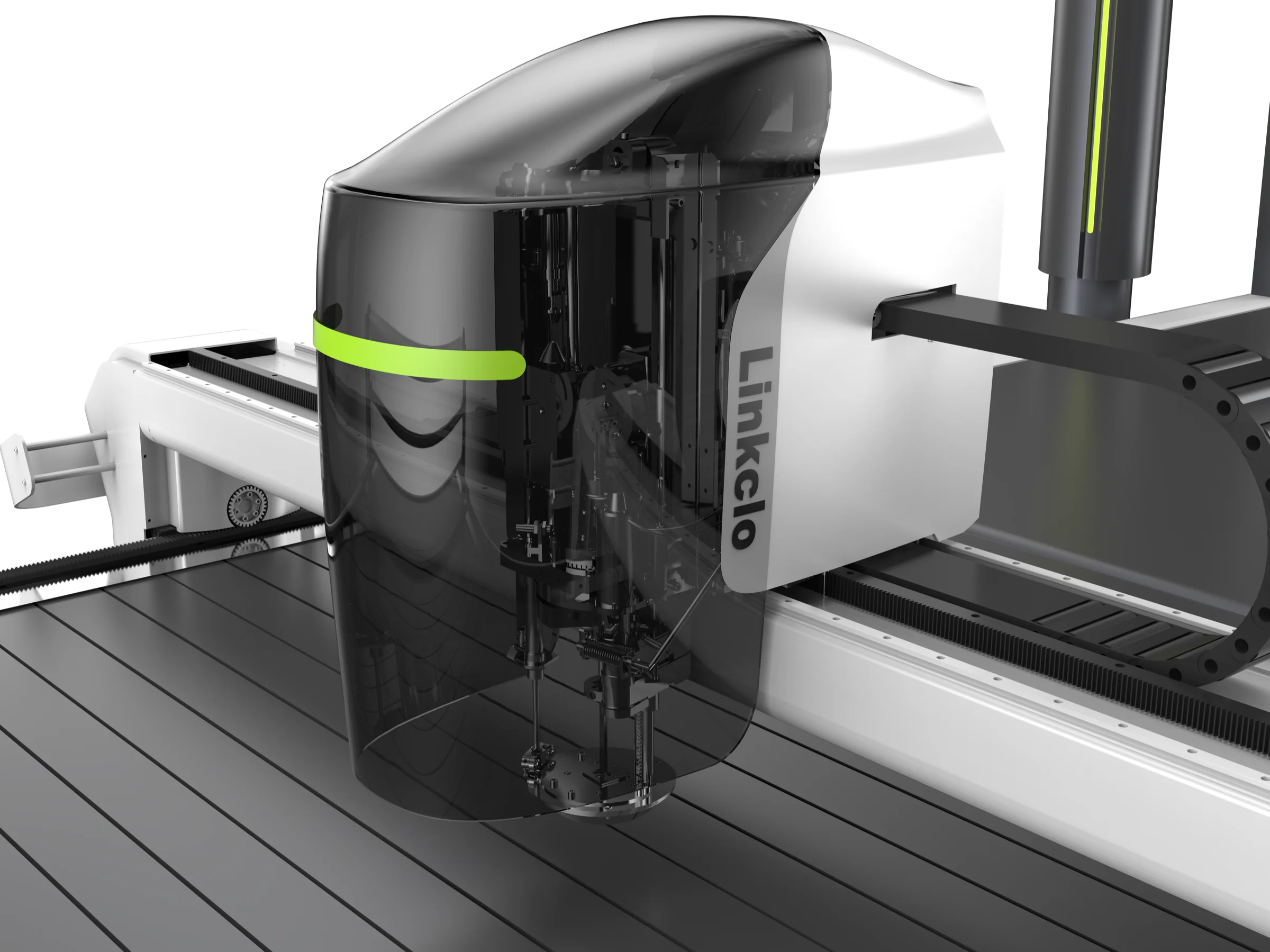

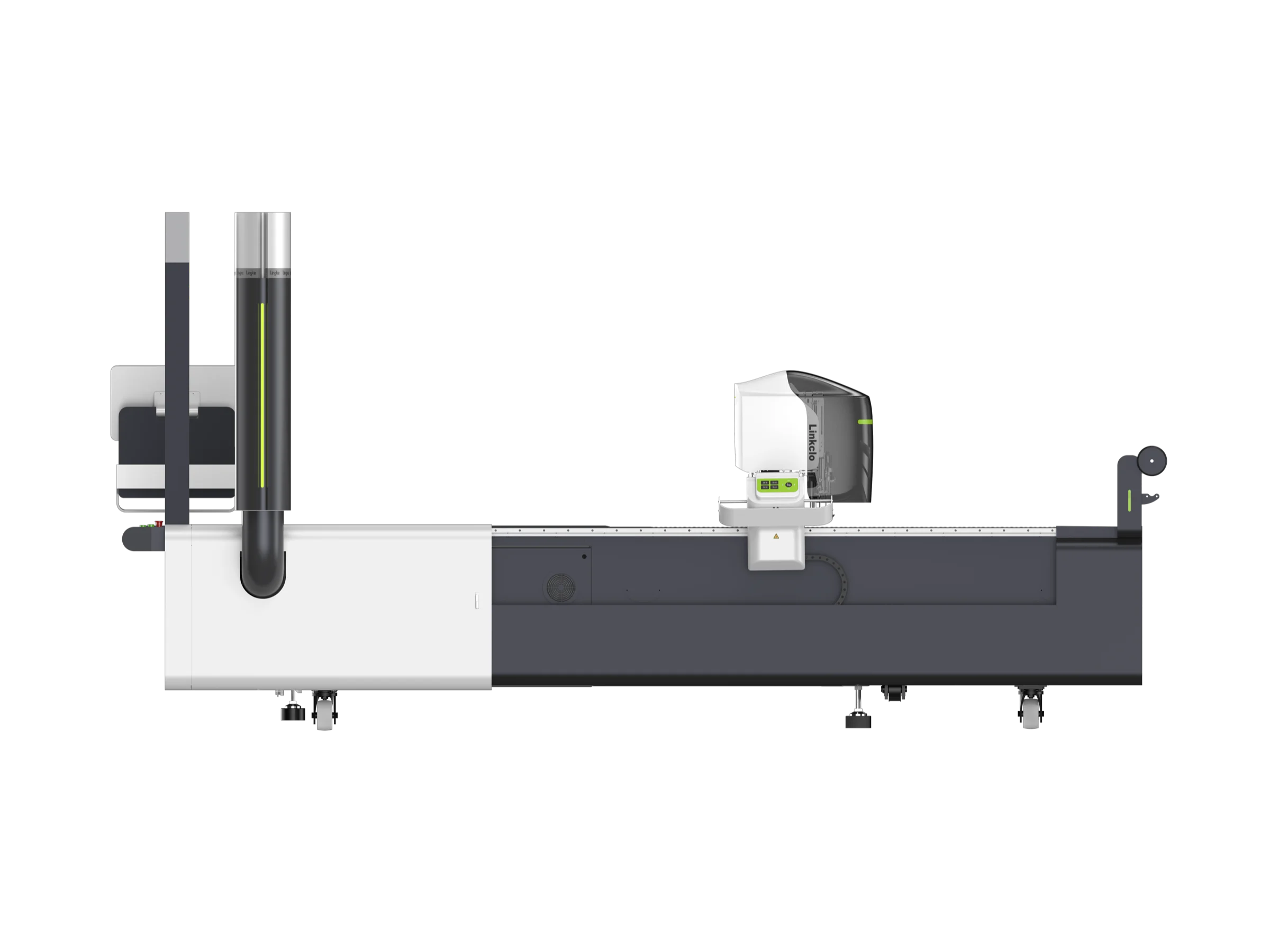

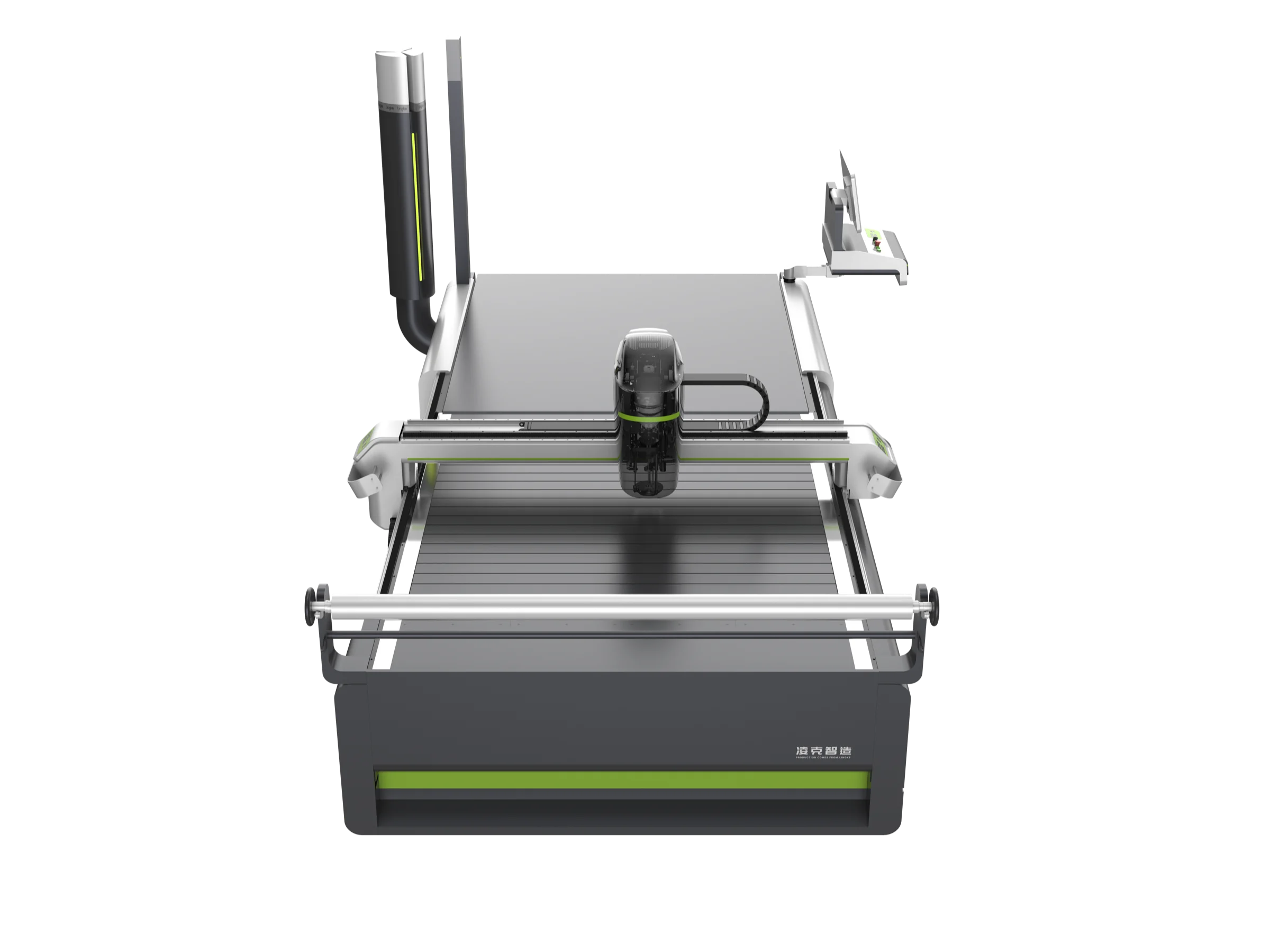

See the FE / FC Series up close
Tap any photo to enlarge. Configurations, working width and options vary by model — talk to an engineer for the build that fits your line.
Where FE / FC Series runs
Industries that pair with this system in production. Tap a card to see the full workflow and the favorable line-up that backs it.
Built for the cutting room
- Bed footprint
- 5180 × (3035.5 / 3238.5 / 3441.5) × 2254 mm
- Weight
- 3,600 – 4,200 kg
- Total power
- 26 / 28 kW
- Vacuum pump
- 9 kW magnetic-levitation (per FE90 spec sheet)
- Blade-trajectory compensation
- Real-time dynamic correction
Model variants in one platform.
Each variant shares the platform vacuum, chassis and control system listed above — selection is by the per-model specs below.
| Spec | FE90 | FE60 | FC80 | FC50 |
|---|---|---|---|---|
| Compressed ply height | 90 mm | 60 mm | 80 mm | 50 mm |
| Blade | 2.4 × 8.5 mm | 2 × 7 mm | 2.4 × 8.5 mm | 2 × 7 mm |
| Max cut speed | 80 m/min | 80 m/min | 50 m/min | 50 m/min |
| Vacuum | 23 kPa | 23 kPa | 21 kPa | 21 kPa |
| Avg. power draw | 12 kW | 12 kW | 10 kW | 10 kW |
Ready for a quote on the FE / FC Series?
Send us material, daily volume and throughput target for your FE / FC Series configuration. A favorable engineer returns a price within 24 hours — typically same business day.
