Carbon-Fibre Fixed-Table Cutter
The 1625 fixed-table platform configured for carbon-fibre composites — physical-blade cutting at ±0.1 mm with no dust, smoke or charred edges.
- Configuration
- Fixed table (1625 platform)
- Cutting area
- 1,600 × 2,500 mm (1625 platform · customisable)
- Max running speed
- Up to 1,800 mm/s (material- and pattern-dependent)
- Cut accuracy
- ±0.1 mm (excl. natural material shrinkage)
favorable carbon-fibre fixed-table cutter applies the 1625 platform to carbon-fibre composite processing. Physical-blade cutting on an imported servo rack-and-pinion drive holds ±0.1 mm accuracy at up to 1,800 mm/s, with vacuum adsorption to hold high-hardness composite flat across the bed.
- Carbon-fibre fabric and prepreg
- Composite sheet and laminate
- High-hardness technical fibre
- Carbon-fibre composite parts
- Aerospace & industrial composites
Built for high-hardness composite
A welded fixed-table bed and vacuum adsorption hold rigid carbon-fibre material flat for clean, continuous cutting.
Precise physical-blade cutting
Servo positioning holds ±0.1 mm tolerance with a physical blade — no dust, no smoke and smooth, un-charred edges.
AI nesting
The nesting system optimises layout across the sheet to make the most of expensive composite material.

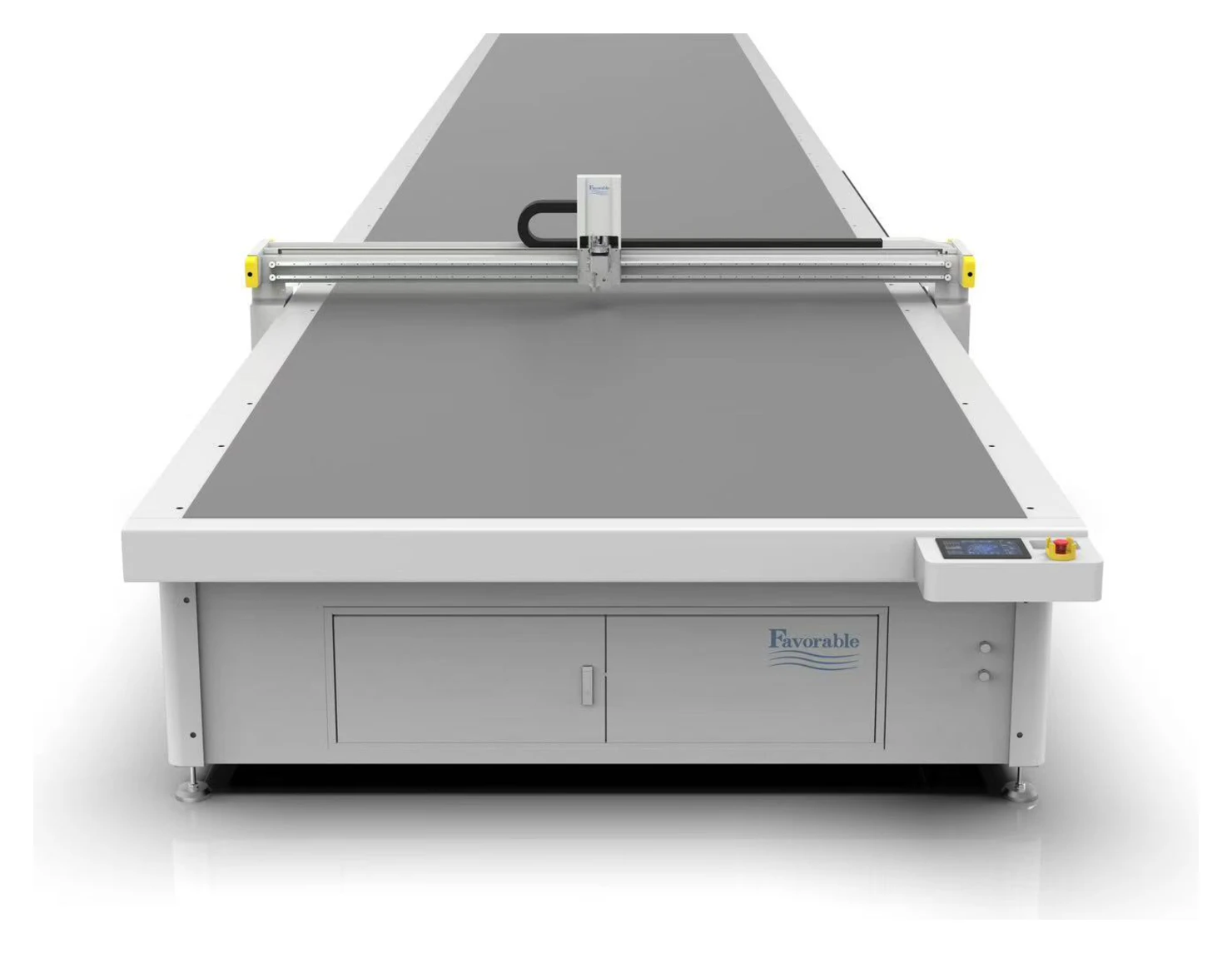

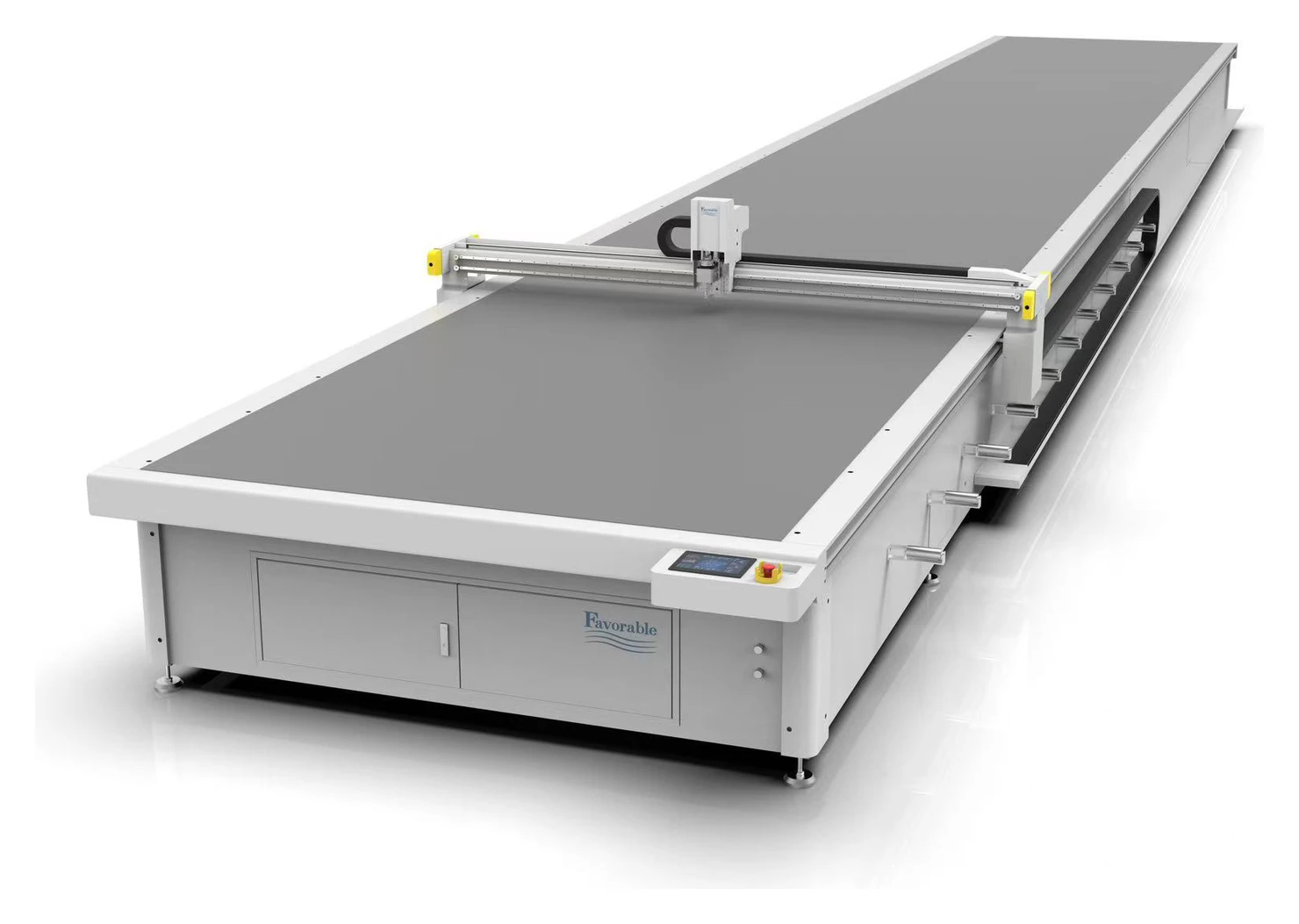

See the Carbon-Fibre Cutter up close
Tap any photo to enlarge. Configurations, working width and options vary by model — talk to an engineer for the build that fits your line.
Where Carbon-Fibre Cutter runs
Industries that pair with this system in production. Tap a card to see the full workflow and the favorable line-up that backs it.
Built for the cutting room
- Configuration
- Fixed table (1625 platform)
- Cutting area
- 1,600 × 2,500 mm (1625 platform · customisable)
- Max running speed
- Up to 1,800 mm/s (material- and pattern-dependent)
- Cut accuracy
- ±0.1 mm (excl. natural material shrinkage)
- Drive system
- High-precision rack & pinion + linear guide
- Drive motor
- Imported servo motor & driver
- Adsorption
- Vacuum adsorption
- Interface
- Ethernet port
- Compatible files
- PLT · DXF and common formats
- Operating voltage
- AC 380 V
More in Single-Ply
LHC Series
LHC standard series is the workhorse single-ply CNC flatbed cutter.
Super-Long Cutter
LHC15016 is the super-long custom cutter — base cutting range 1,600 × 1,500 mm with build-to-order widths above 1,000 mm, lengths above 1,600 mm and heights above 20 mm.
Silent Sample Cutter
LHC1512 / LHC1516 is the silent precision pattern cutter — built for pattern rooms that need sample cuts without ambient noise.
Fixed-Table 1625
The 1625 fixed-table cutter is favorable's 1,600 × 2,500 mm single-ply base — a fixed vacuum-adsorption bed driven by an imported servo rack-and-pinion system at up to 1,800 mm/s, 60 mm cut thickness and ±0.
Ready for a quote on the Carbon-Fibre Cutter?
Send us material, daily volume and throughput target for your Carbon-Fibre Cutter configuration. A favorable engineer returns a price within 24 hours — typically same business day.
