1625 Fixed-Table Cutter
A 1,600 × 2,500 mm fixed vacuum bed for single-ply cutting at up to 1,800 mm/s and ±0.1 mm — the 1625 platform without the auto-feed conveyor.
- Cutting area
- 1,600 × 2,500 mm (customisable)
- Configuration
- Fixed table — no auto-feed conveyor
- Max running speed
- Up to 1,800 mm/s (material- and pattern-dependent)
- Max cut thickness
- 60 mm (customisable)
The 1625 fixed-table cutter is favorable's 1,600 × 2,500 mm single-ply base — a fixed vacuum-adsorption bed driven by an imported servo rack-and-pinion system at up to 1,800 mm/s, 60 mm cut thickness and ±0.1 mm accuracy. It is the auto-feed platform without the conveyor, for shops that lay material by hand.
- Full-grain and synthetic leather
- Woven and knit fabric
- Advertising / printing media
- Foam / EVA
- Leather goods & footwear
- Advertising & printing media
- Furniture & upholstery
- Garment cut floors
Fixed vacuum bed
A 1,600 × 2,500 mm vacuum-adsorption table holds single-ply material flat for ±0.1 mm cutting — the auto-feed platform minus the conveyor.
Digitizer & one-click resize
Scan paper patterns straight into the system and convert them to digital files — resize, re-order and revise a pattern with one click for easier production management.
Auto edge-alignment
Fully-automatic alignment detects uneven hide or fabric edges and adjusts position so the material always stays inside the cuttable range — high-precision, uninterrupted cutting.

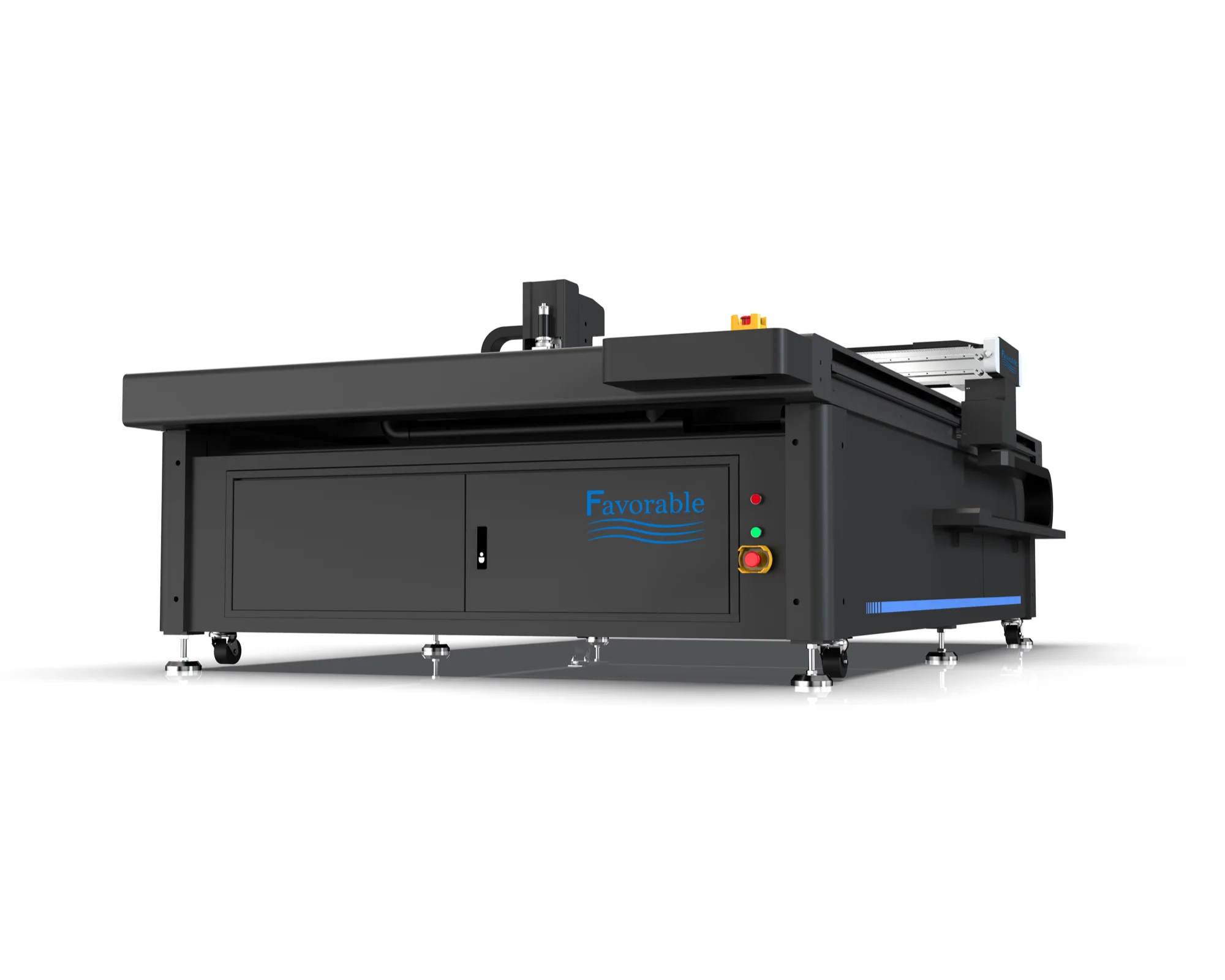

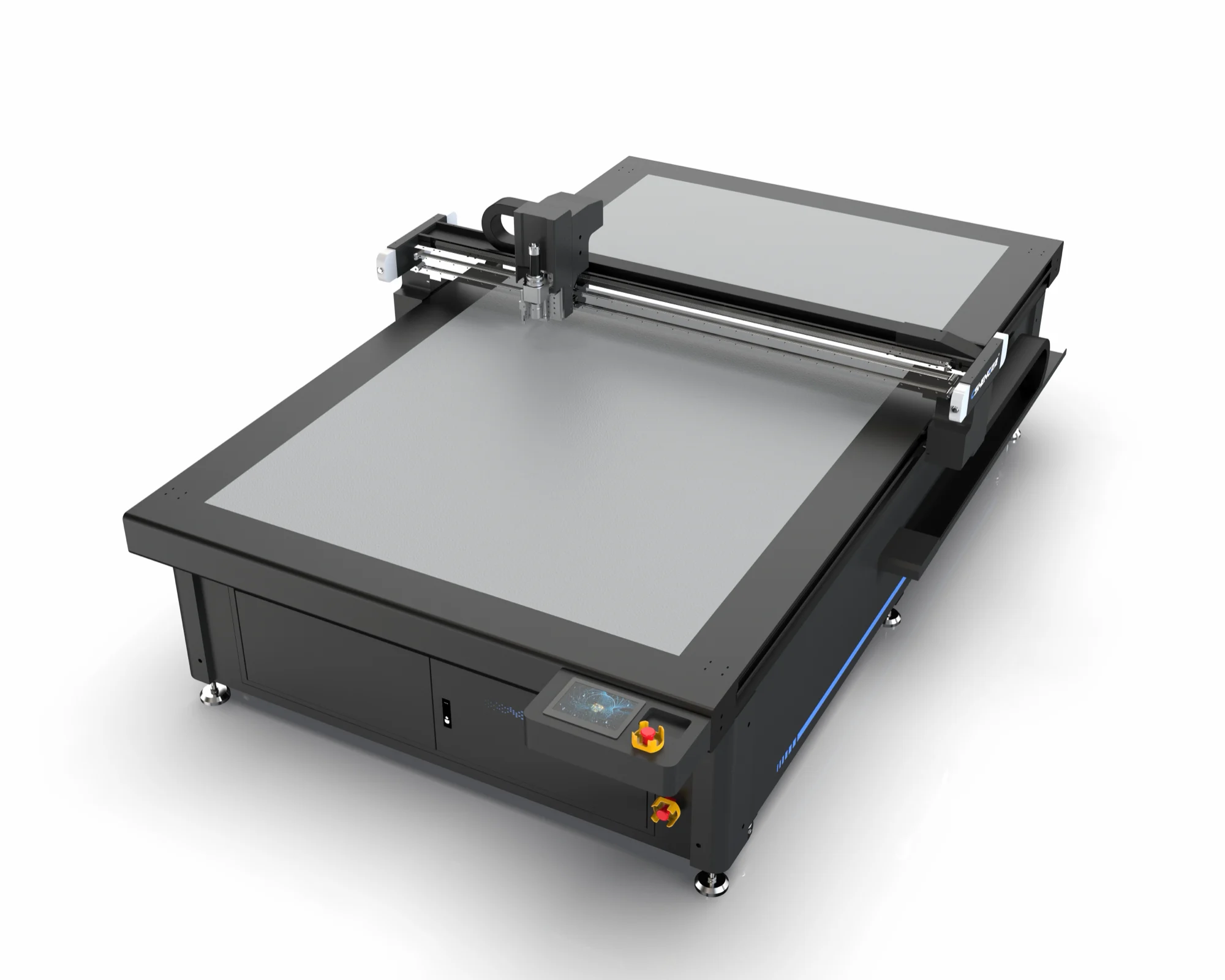

See the Fixed-Table 1625 up close
Tap any photo to enlarge. Configurations, working width and options vary by model — talk to an engineer for the build that fits your line.
Where Fixed-Table 1625 runs
Industries that pair with this system in production. Tap a card to see the full workflow and the favorable line-up that backs it.
Built for the cutting room
- Cutting area
- 1,600 × 2,500 mm (customisable)
- Configuration
- Fixed table — no auto-feed conveyor
- Max running speed
- Up to 1,800 mm/s (material- and pattern-dependent)
- Max cut thickness
- 60 mm (customisable)
- Cut accuracy
- ±0.1 mm (excl. natural material shrinkage)
- Drive system
- High-precision rack & pinion + linear guide
- Drive motor
- Imported servo motor & driver
- Adsorption
- Vacuum adsorption
- Interface
- Ethernet port
- Compatible files
- PLT · DXF and common formats
- Operating voltage
- AC 380 V
More in Single-Ply
Auto-Feed 1625
The 1625 auto-feed cutter adds a powered conveyor to the 1,600 × 2,500 mm platform, feeding material continuously through the cutting zone for uninterrupted production.
Extended 1625
The 1625 extended-bed cutter lengthens the auto-feed conveyor to a 4,400 mm footprint for oversized panels and long technical-fabric runs.
Multi-Ply 1625
The 1625 multi-layer line extends the platform into a small-multi-layer spread-and-cut workflow, with separate loading, spreading, cutting and receiving zones and an air-floating, non-powered secondary laminating tabletop.
Vision 1625
The 1625 large-vision cutter adds an overhead large-vision camera system to the 1,600 × 2,500 mm platform, locating printed marks and contours for accurate cut-to-print registration.
Ready for a quote on the Fixed-Table 1625?
Send us material, daily volume and throughput target for your Fixed-Table 1625 configuration. A favorable engineer returns a price within 24 hours — typically same business day.
