1625 Extended-Bed Cutter
A 4,400 mm-long conveyor cutter for oversized panels and long technical-fabric runs — 1,800 mm/s, ±0.1 mm, with a silent drag chain and gigabit interface.
- Cutting area
- 1,600 × 2,500 mm (customisable)
- Configuration
- Auto-feed · extended bed
- Overall (W × L × H)
- 2,233 × 4,400 × 1,300 mm
- Weight
- 950 kg
The 1625 extended-bed cutter lengthens the auto-feed conveyor to a 4,400 mm footprint for oversized panels and long technical-fabric runs. It adds a silent drag chain and a gigabit interface for quieter, higher-throughput continuous operation, while keeping the platform's 1,800 mm/s speed, 60 mm cut thickness and ±0.1 mm accuracy.
- Composite & technical fibre
- Woven and knit fabric
- Advertising / printing media
- Foam / EVA
- Composite & technical fibre
- Advertising & printing media
- Furniture & upholstery
- Garment cut floors
Extended cutting bed
A 4,400 mm-long footprint lengthens the conveyor for oversized panels and long technical-fabric runs.
Silent drag chain & gigabit
A silent drag chain and a gigabit Ethernet interface keep continuous operation quiet and high-throughput.
Auto edge-alignment
Fully-automatic alignment detects uneven hide or fabric edges and adjusts position so the material always stays inside the cuttable range — high-precision, uninterrupted cutting.

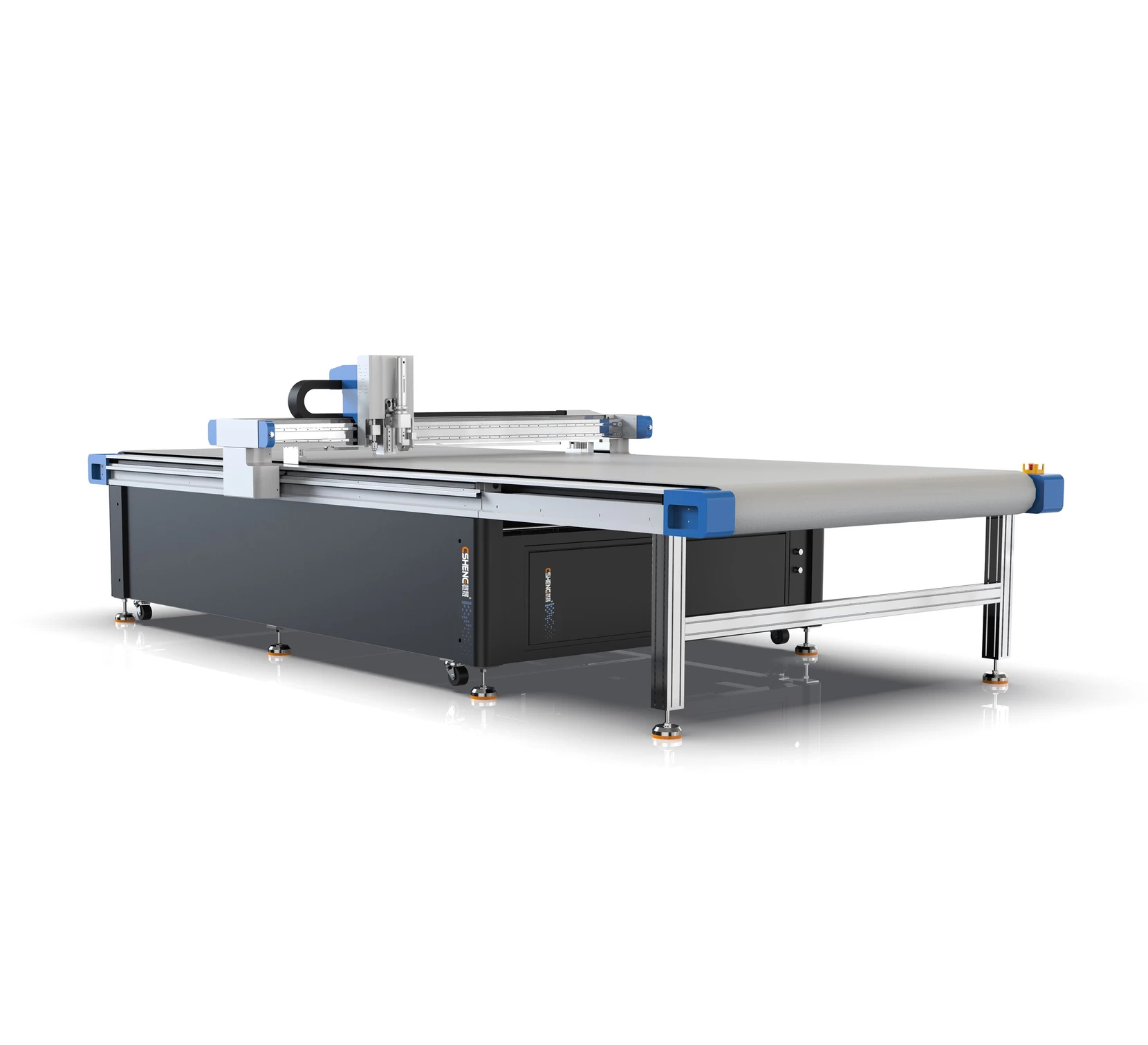

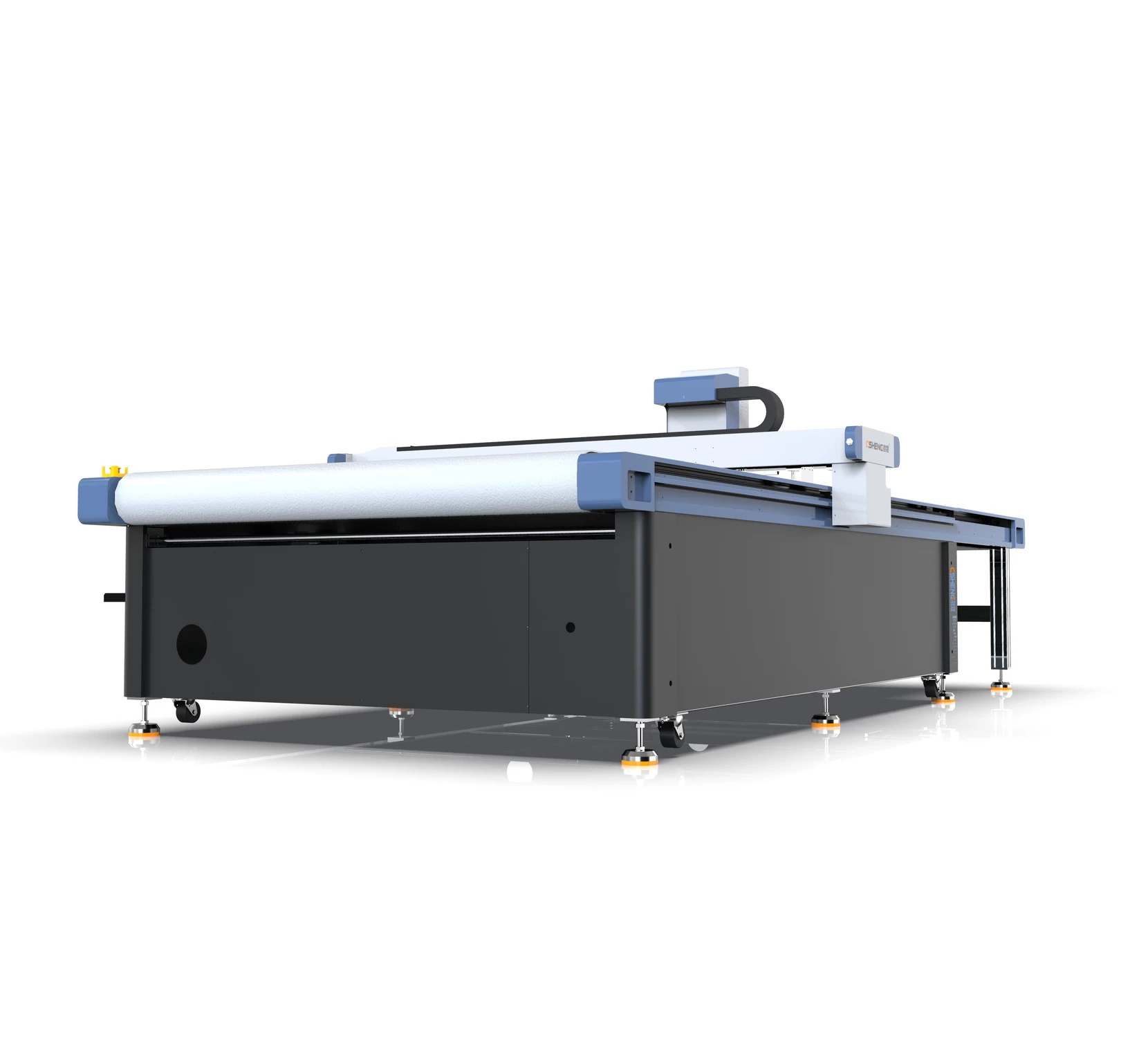

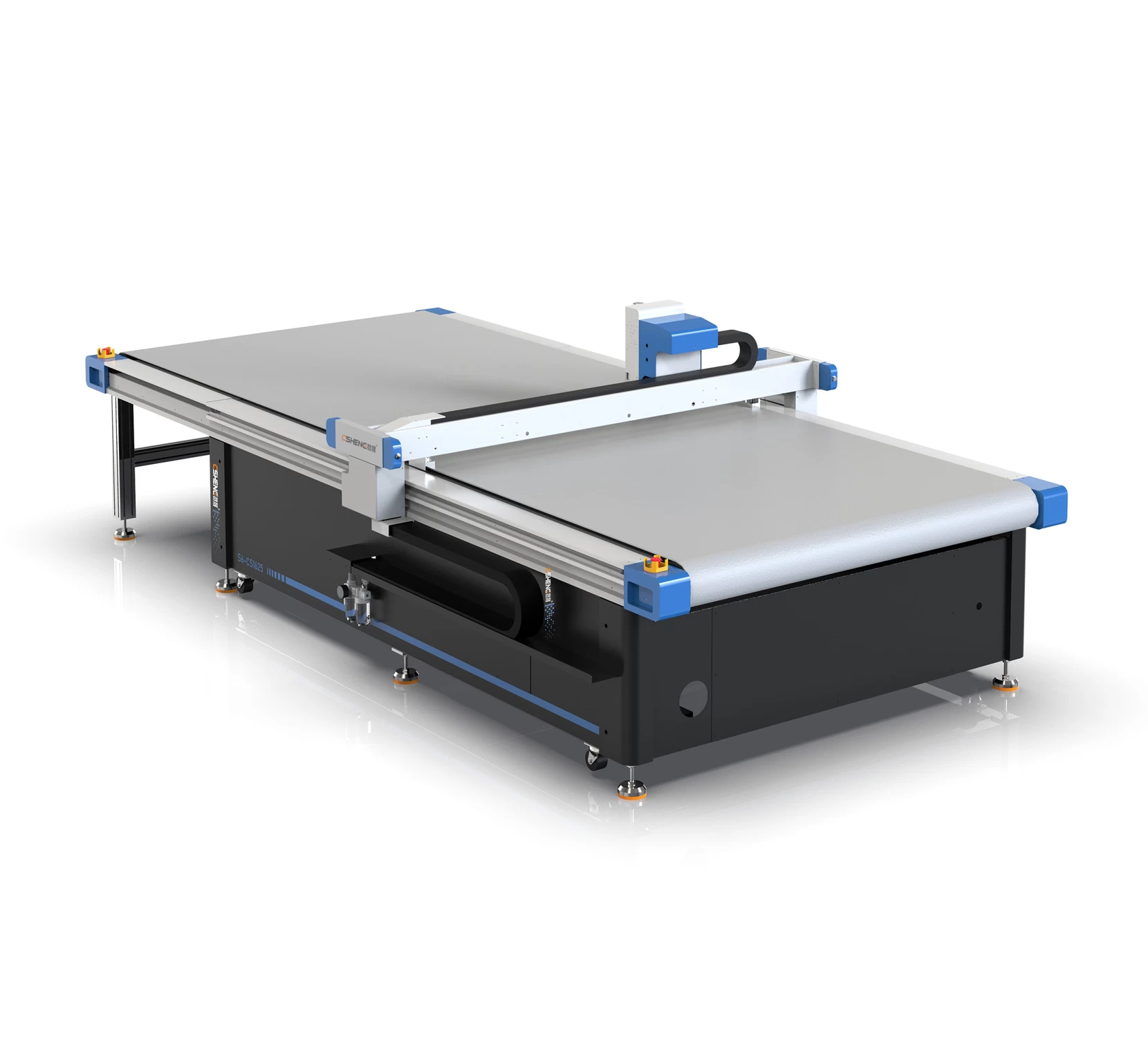

See the Extended 1625 up close
Tap any photo to enlarge. Configurations, working width and options vary by model — talk to an engineer for the build that fits your line.
Where Extended 1625 runs
Industries that pair with this system in production. Tap a card to see the full workflow and the favorable line-up that backs it.
Built for the cutting room
- Cutting area
- 1,600 × 2,500 mm (customisable)
- Configuration
- Auto-feed · extended bed
- Overall (W × L × H)
- 2,233 × 4,400 × 1,300 mm
- Weight
- 950 kg
- Extras
- Silent drag chain · gigabit interface
- Max running speed
- Up to 1,800 mm/s (material- and pattern-dependent)
- Max cut thickness
- 60 mm (customisable)
- Cut accuracy
- ±0.1 mm (excl. natural material shrinkage)
- Drive system
- High-precision rack & pinion + linear guide
- Drive motor
- Imported servo motor & driver
- Adsorption
- Vacuum adsorption
- Compatible files
- PLT · DXF and common formats
- Operating voltage
- AC 380 V
