1625 Multi-Layer Spread-and-Cut Line
A small-multi-layer spread-and-cut line with separate loading, spreading, cutting and receiving zones on an air-floating tabletop — 1,800 mm/s, ±0.1 mm.
- Cutting area
- 1,600 × 2,500 mm (customisable)
- Configuration
- Multi-layer spread-and-cut line

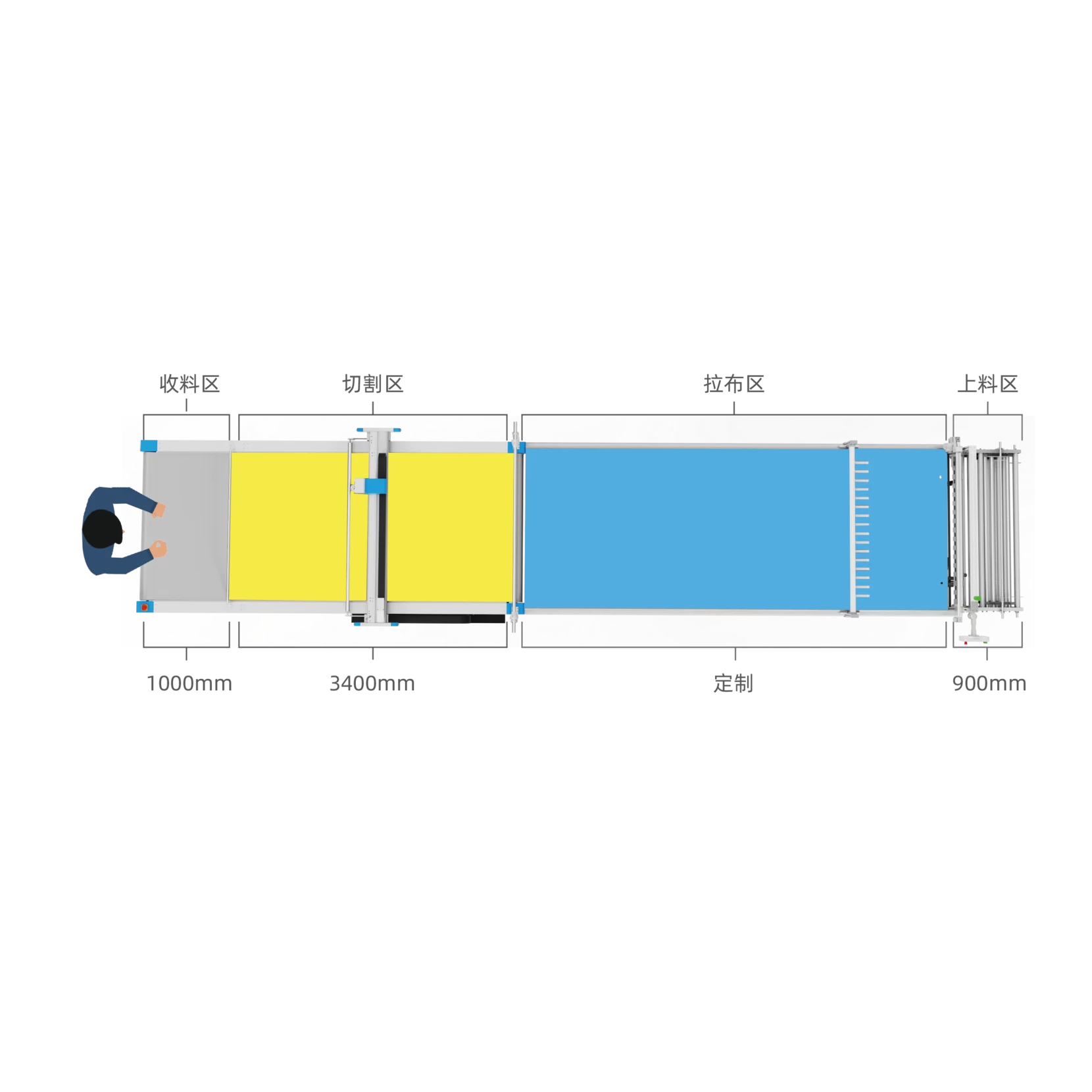

- Work zones
- Loading 900 · spreading custom · cutting 3,400 · receiving 1,000 mm
- Tabletop
- Air-floating · non-powered secondary laminating
The 1625 multi-layer line extends the platform into a small-multi-layer spread-and-cut workflow, with separate loading, spreading, cutting and receiving zones and an air-floating, non-powered secondary laminating tabletop. It keeps the 1,800 mm/s speed, 60 mm cut thickness and ±0.1 mm accuracy of the single-ply platform.
- Woven and knit fabric
- Full-grain and synthetic leather
- Advertising / printing media
- Foam / EVA
- Garment cut floors
- Furniture & upholstery
- Advertising & printing media
- Leather goods & footwear
Spread-and-cut line
Separate loading, spreading, cutting and receiving zones turn the platform into a small-multi-layer spread-and-cut line.
Air-floating tabletop
An air-floating, non-powered secondary laminating tabletop moves stacked lays smoothly between zones.
Digitizer & one-click resize
Scan paper patterns straight into the system and convert them to digital files — resize, re-order and revise a pattern with one click for easier production management.

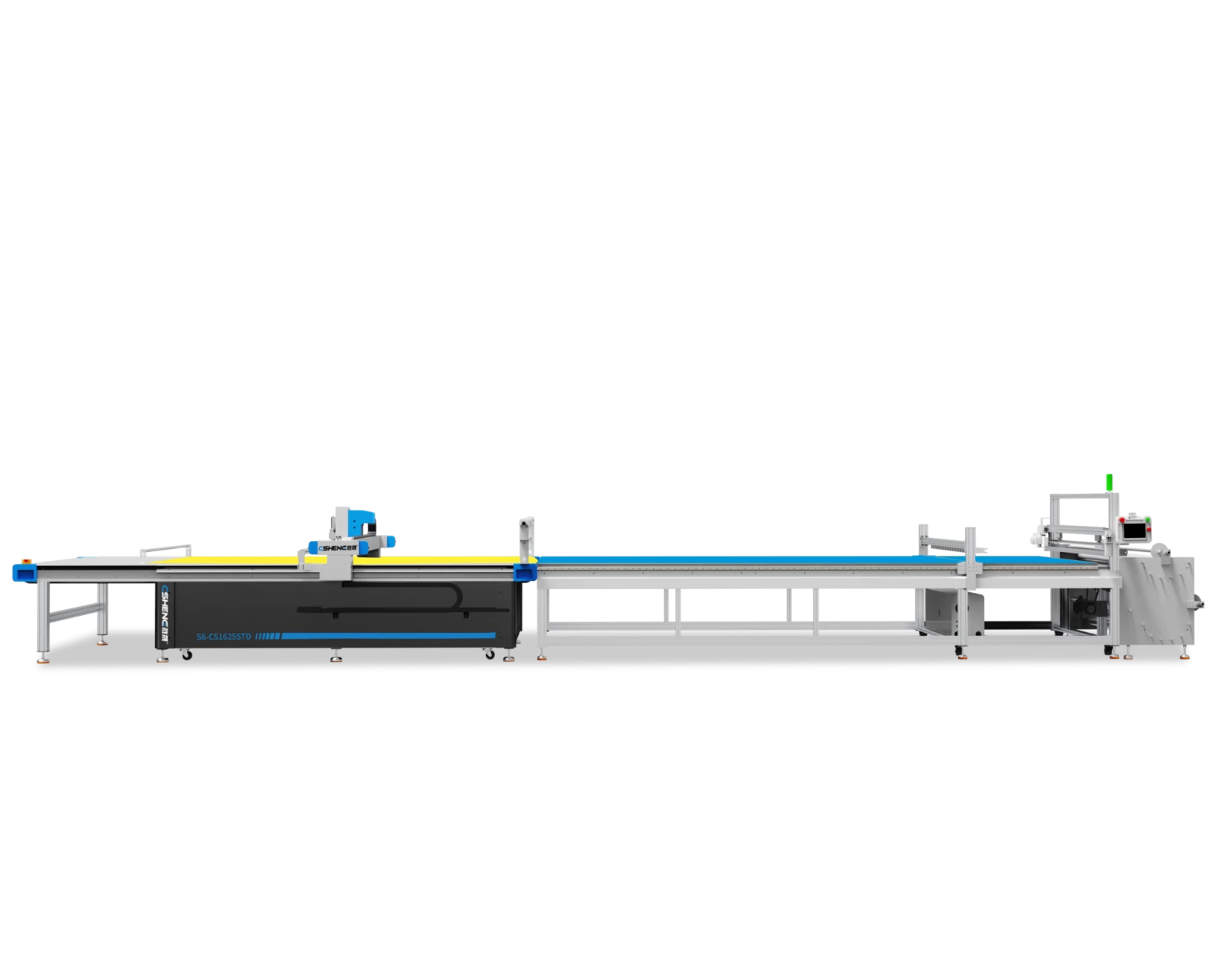

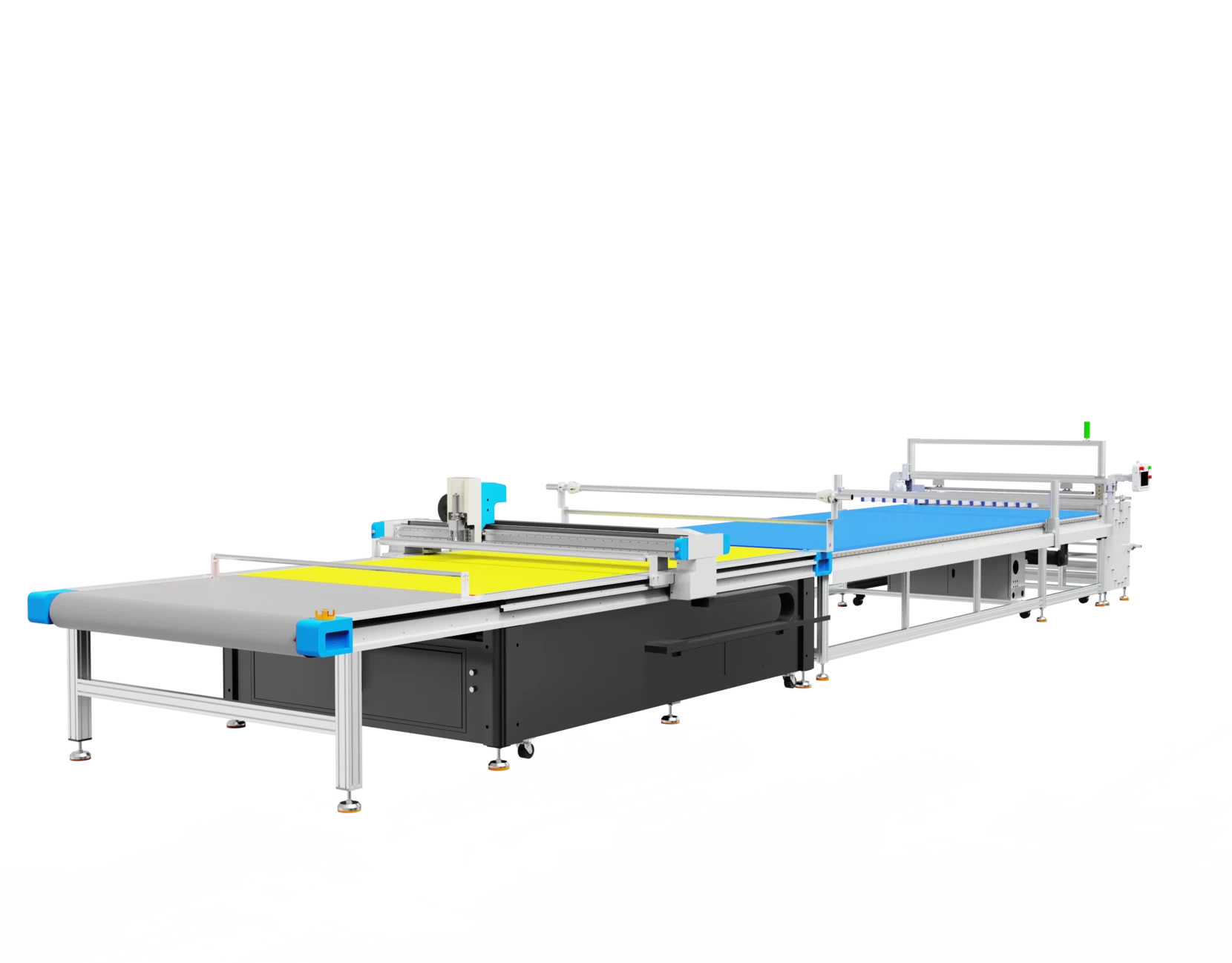

See the Multi-Ply 1625 up close
Tap any photo to enlarge. Configurations, working width and options vary by model — talk to an engineer for the build that fits your line.
Where Multi-Ply 1625 runs
Industries that pair with this system in production. Tap a card to see the full workflow and the favorable line-up that backs it.
Built for the cutting room
- Cutting area
- 1,600 × 2,500 mm (customisable)
- Configuration
- Multi-layer spread-and-cut line
- Work zones
- Loading 900 · spreading custom · cutting 3,400 · receiving 1,000 mm
- Tabletop
- Air-floating · non-powered secondary laminating
- Max running speed
- Up to 1,800 mm/s (material- and pattern-dependent)
- Max cut thickness
- 60 mm (customisable)
- Cut accuracy
- ±0.1 mm (excl. natural material shrinkage)
- Drive system
- High-precision rack & pinion + linear guide
- Drive motor
- Imported servo motor & driver
- Adsorption
- Vacuum adsorption
- Interface
- Ethernet port
- Compatible files
- PLT · DXF and common formats
- Operating voltage
- AC 380 V
More in Single-Ply
Fixed-Table 1625
The 1625 fixed-table cutter is favorable's 1,600 × 2,500 mm single-ply base — a fixed vacuum-adsorption bed driven by an imported servo rack-and-pinion system at up to 1,800 mm/s, 60 mm cut thickness and ±0.
Auto-Feed 1625
The 1625 auto-feed cutter adds a powered conveyor to the 1,600 × 2,500 mm platform, feeding material continuously through the cutting zone for uninterrupted production.
Extended 1625
The 1625 extended-bed cutter lengthens the auto-feed conveyor to a 4,400 mm footprint for oversized panels and long technical-fabric runs.
Vision 1625
The 1625 large-vision cutter adds an overhead large-vision camera system to the 1,600 × 2,500 mm platform, locating printed marks and contours for accurate cut-to-print registration.
Ready for a quote on the Multi-Ply 1625?
Send us material, daily volume and throughput target for your Multi-Ply 1625 configuration. A favorable engineer returns a price within 24 hours — typically same business day.
