Fiberglass Cutting Machine
Precision fiberglass cutting for aerospace composites and wind power — ±0.1 mm servo positioning, smokeless physical-blade cutting and AI nesting that lifts material yield 15%+.
- Cut accuracy
- ±0.1 mm
- Max speed
- 1,800 mm/s
- Cutting area
- 1,600 × 2,500 mm
- Material saved
- 15%+
Customisable
AI nesting
favorable fiberglass cutting machine is the 1625 platform developed for the glass-fibre industry — a precise, smokeless solution for aerospace composites and wind-power fiberglass. 1,600 × 2,500 mm cutting area (customisable), up to 1,800 mm/s, ±0.1 mm accuracy, vacuum adsorption and a welded high-precision bed, with an AI nesting system that raises material utilisation by over 15%.
- Fibreglass yarn
- Fibreglass mesh cloth
- Thin fibreglass cloth
- Fibreglass needled mat
- Fibreglass board
- Radiation-resistant fibreglass
- Fibreglass insulation board
- Fibreglass insulation felt
- Aerospace composites
- Wind-power fiberglass
- Fibreglass scrim & mesh
- Insulation board & felt
An innovation in precision fiberglass cutting
Industry-tailored
Developed specifically for glass-fibre materials — avoids fibre burrs and supports continuous cutting of high-hardness composites.
Material saving
The AI nesting system automatically optimises layout, raising material utilisation by more than 15%.
Precise cutting
Servo pulse positioning holds ±0.1 mm tolerance — meeting aerospace-grade fiberglass component standards.
Eco & smokeless
Physical blade cutting produces no dust or smoke — smooth, un-charred edges with no odour.
Ultra-high efficiency
Top speed up to 1,800 mm/s; one machine can replace 4–6 manual workers.
Smart protection
A safety light curtain plus mechanical anti-collision give dual protection at high running speed.
See the Fiberglass Cutter up close
Tap any photo to enlarge. Configurations, working width and options vary by model — talk to an engineer for the build that fits your line.

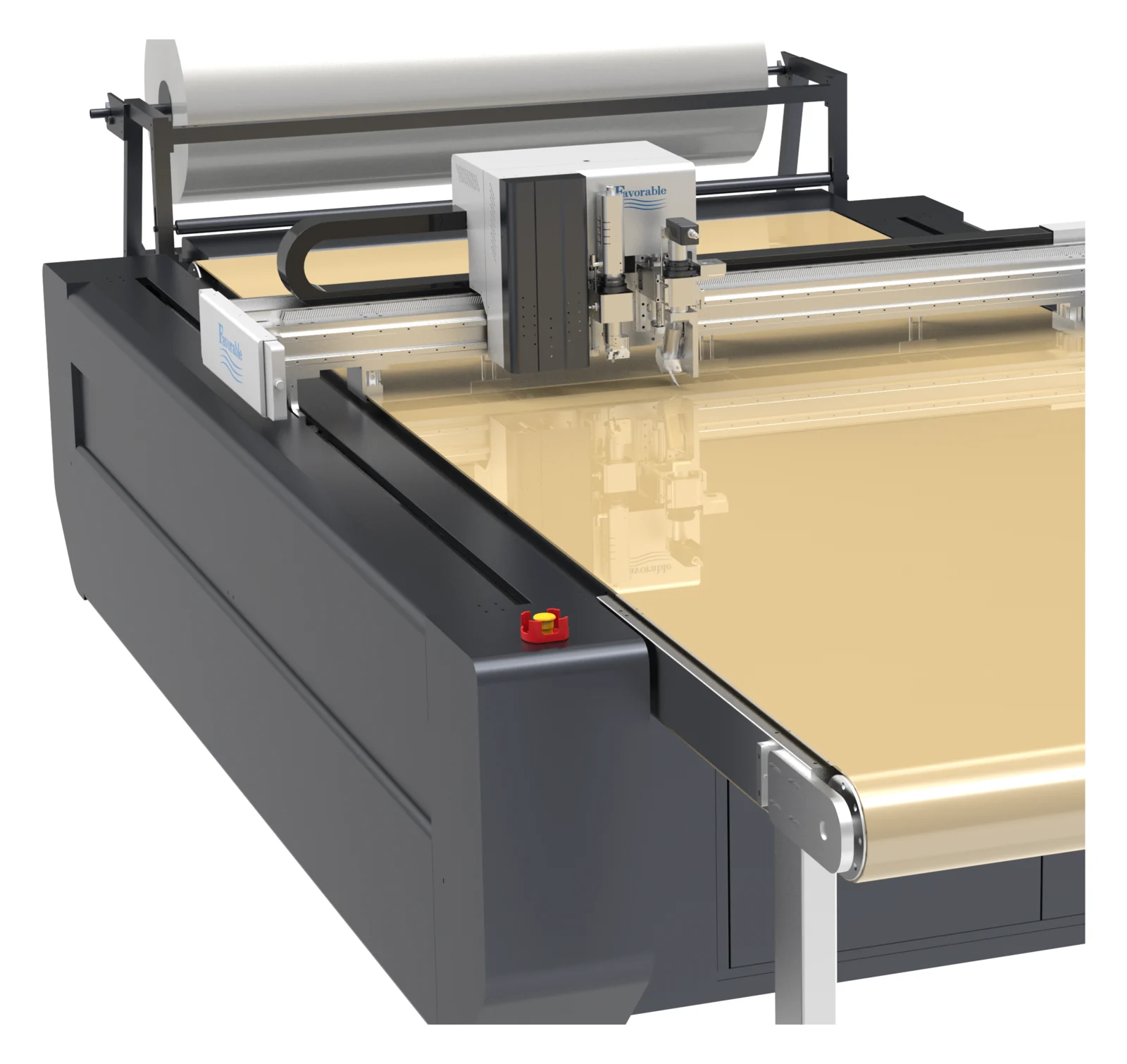

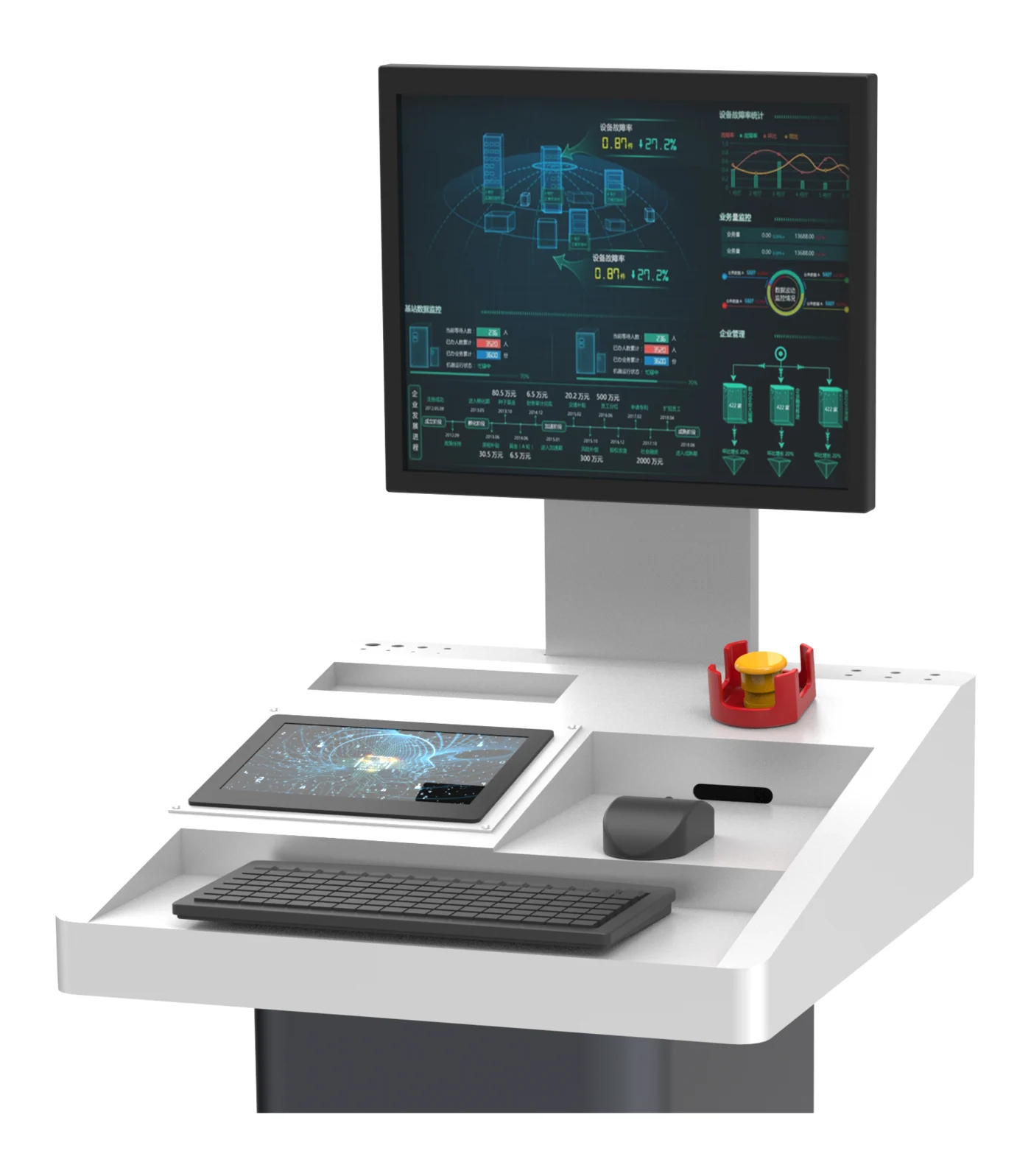

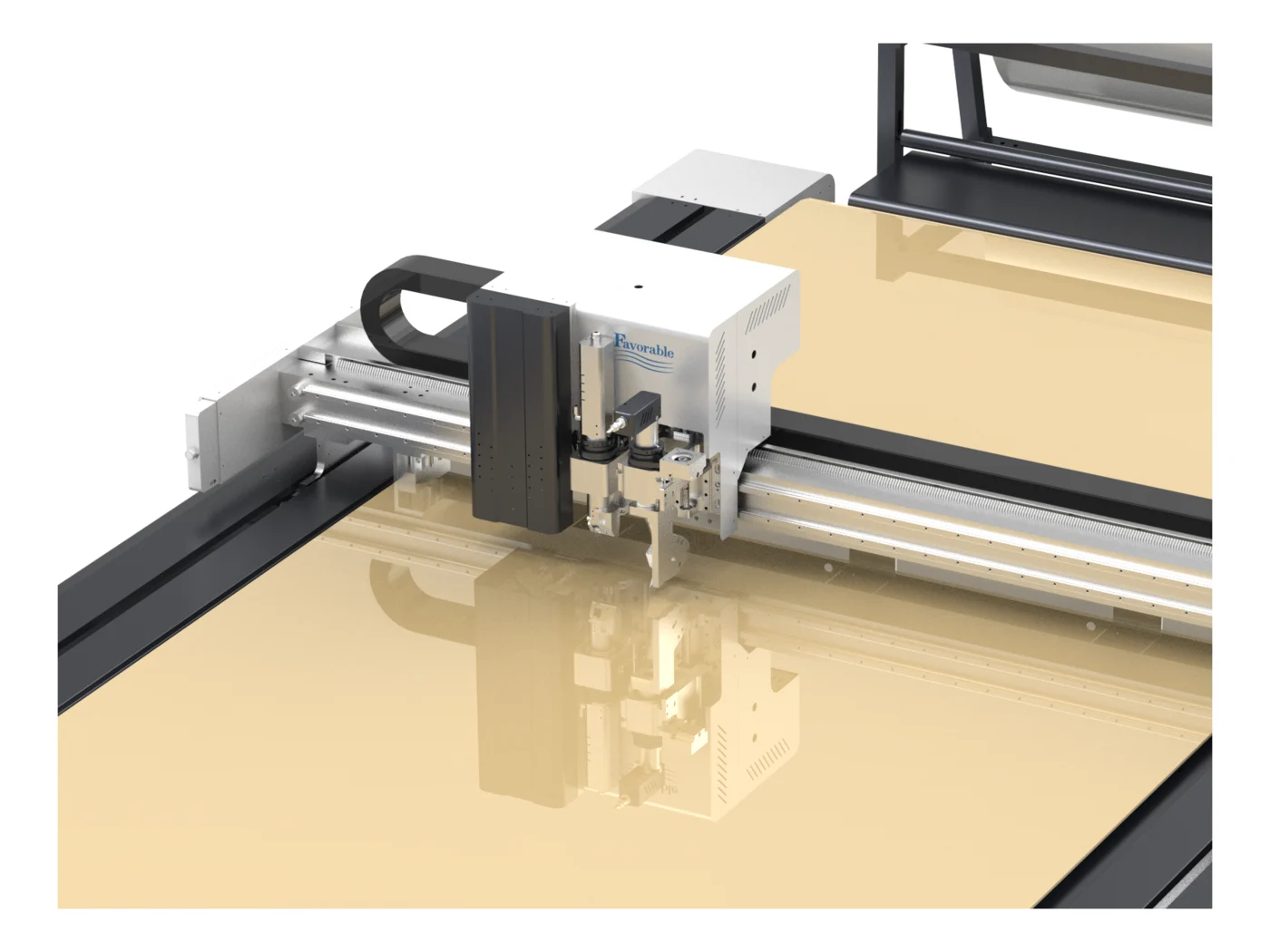

Modular smart cutting head with servo drive Welded high-precision bed with conveyor feed Intelligent touch-screen control console
Where Fiberglass Cutter runs
Industries that pair with this system in production. Tap a card to see the full workflow and the favorable line-up that backs it.
Built for the cutting room
- Cutting area
- 1,600 × 2,500 mm (customisable)
- Max running speed
- Up to 1,800 mm/s (material- and pattern-dependent)
- Max cut thickness
- 60 mm (customisable)
- Cut accuracy
- ±0.1 mm (excl. natural material shrinkage)
- Drive system
- High-precision rack & pinion + linear guide
- Drive motor
- Imported servo motor & driver
- Adsorption
- Vacuum adsorption
- Interface
- Ethernet port
- Compatible files
- PLT · DXF and common formats
- Operating voltage
- AC 380 V
- Overall (W × L × H)
- 2,233 × 4,400 × 1,300 mm
- Weight
- 950 kg
More in Single-Ply
LHC Series
LHC standard series is the workhorse single-ply CNC flatbed cutter.
Super-Long Cutter
LHC15016 is the super-long custom cutter — base cutting range 1,600 × 1,500 mm with build-to-order widths above 1,000 mm, lengths above 1,600 mm and heights above 20 mm.
Silent Sample Cutter
LHC1512 / LHC1516 is the silent precision pattern cutter — built for pattern rooms that need sample cuts without ambient noise.
Fixed-Table 1625
The 1625 fixed-table cutter is favorable's 1,600 × 2,500 mm single-ply base — a fixed vacuum-adsorption bed driven by an imported servo rack-and-pinion system at up to 1,800 mm/s, 60 mm cut thickness and ±0.
Ready for a quote on the Fiberglass Cutter?
Send us material, daily volume and throughput target for your Fiberglass Cutter configuration. A favorable engineer returns a price within 24 hours — typically same business day.
