Single-Head Footwear & Luggage Cutter
A 1,600 × 800 mm single-head bed for the shoe and bag trade — cuts uppers, linings and bag panels at 1,800 mm/s with ±0.1 mm accuracy.
- Cutting area
- 1,600 × 800 mm
- Heads
- Single-head
- Max running speed
- Up to 1,800 mm/s (material- and pattern-dependent)
- Max cut thickness
- 50 mm (customisable)
favorable's single-head footwear & luggage cutter runs a 1,600 × 800 mm vacuum bed at up to 1,800 mm/s with ±0.1 mm accuracy, cutting material up to 50 mm on an imported servo rack-and-pinion drive. A digitiser and one-click resizing make reorder runs fast, while the single cutting head keeps the footprint compact for sample rooms and small-batch shoe and bag lines.
- Shoe upper and lining material
- Synthetic and full-grain leather
- Bag and luggage fabric
- Reinforcement board and foam
- Footwear components
- Luggage & bag panels
- Sample-room cutting
Compact single-head bed
A 1,600 × 800 mm vacuum bed sized for sample rooms and small-batch shoe and bag production.
Digitiser + one-click resizing
On-bed digitising and one-button sizing make reorders and pattern revisions fast and accurate.
Fast, accurate machine cutting
1,800 mm/s knife speed and ±0.1 mm accuracy keep yield high on patterned uppers, linings and bag panels.

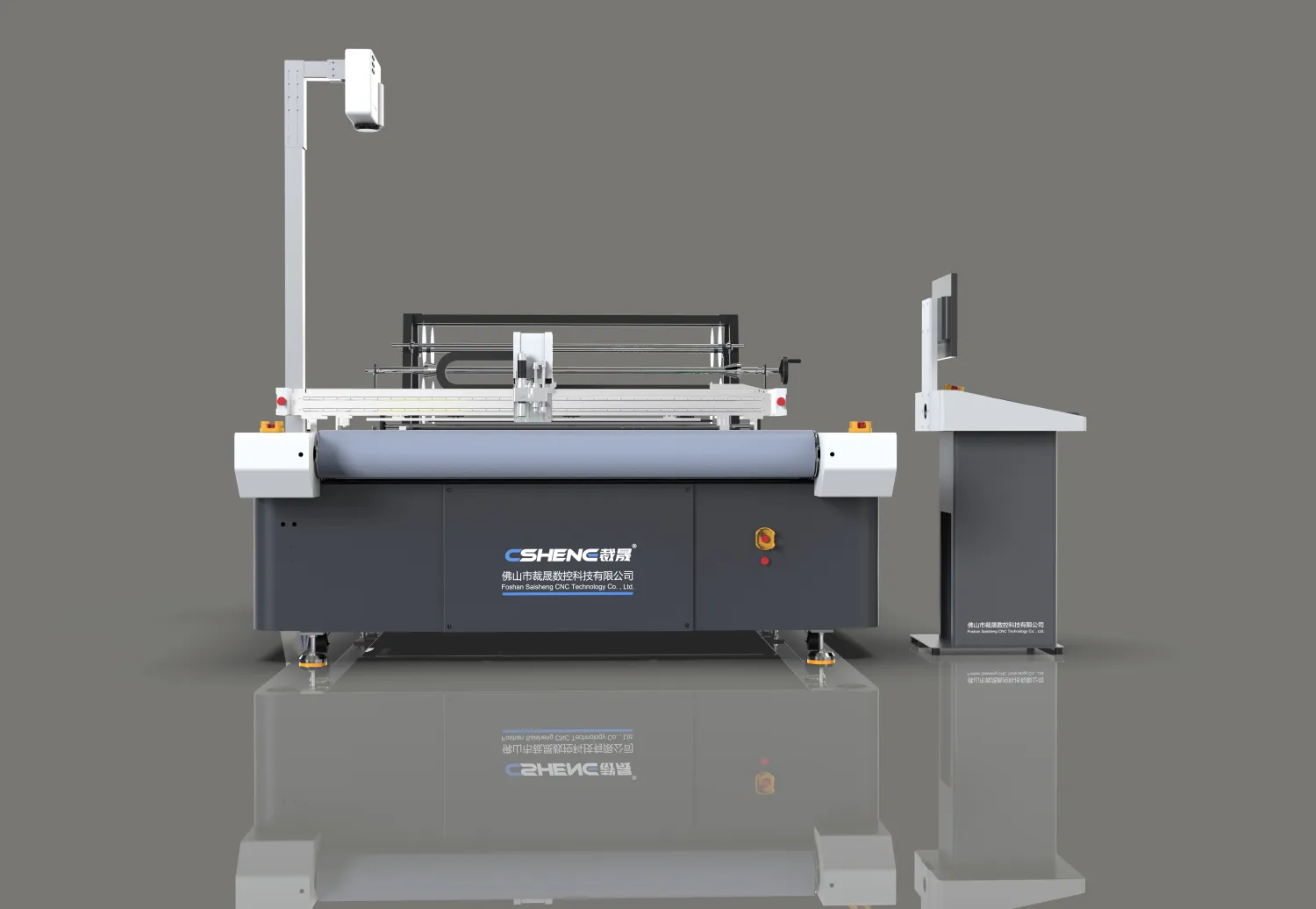

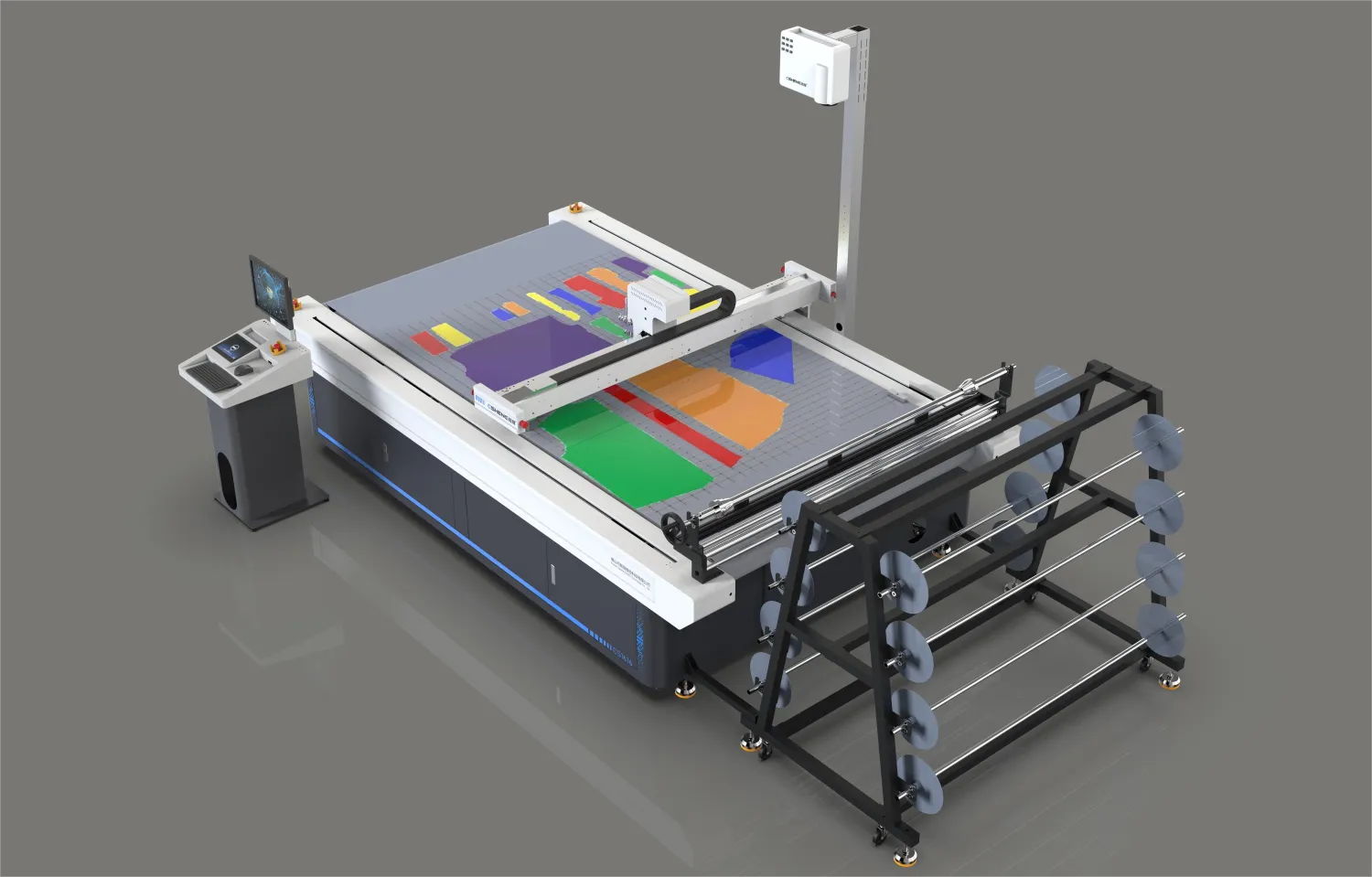

See the Footwear 1608 up close
Tap any photo to enlarge. Configurations, working width and options vary by model — talk to an engineer for the build that fits your line.
Where Footwear 1608 runs
Industries that pair with this system in production. Tap a card to see the full workflow and the favorable line-up that backs it.
Built for the cutting room
- Cutting area
- 1,600 × 800 mm
- Heads
- Single-head
- Max running speed
- Up to 1,800 mm/s (material- and pattern-dependent)
- Max cut thickness
- 50 mm (customisable)
- Cut accuracy
- ±0.1 mm
- Drive system
- High-precision rack & pinion + linear guide
- Drive motor
- Imported servo motor & driver
- Adsorption
- Vacuum adsorption
- Interface
- Ethernet port
- Compatible files
- PLT · DXF and common formats
- Operating voltage
- AC 380 V
- Overall (W × L × H)
- 2,545 × 2,270 × 1,300 mm
- Weight
- 1,200 kg
