Dual-Head Footwear & Luggage Cutter
A 1,600 × 1,600 mm dual-head asynchronous bed — two heads cut independently for higher throughput on shoe and bag production.
- Cutting area
- 1,600 × 1,600 mm
- Heads
- Dual-head asynchronous
- Max running speed
- Up to 1,800 mm/s (material- and pattern-dependent)
- Max cut thickness
- 50 mm (customisable)
favorable's dual-head footwear & luggage cutter runs a 1,600 × 1,600 mm vacuum bed at up to 1,800 mm/s with ±0.1 mm accuracy, cutting material up to 50 mm on an imported servo rack-and-pinion drive. Two asynchronous cutting heads work the bed independently, so the machine sustains higher throughput than a single-head bed on production-scale shoe and bag runs.
- Shoe upper and lining material
- Synthetic and full-grain leather
- Bag and luggage fabric
- Reinforcement board and foam
- Footwear components
- Luggage & bag panels
- Production-scale cutting
Dual asynchronous heads
Two cutting heads run independently across a 1,600 × 1,600 mm bed for higher throughput on production runs.
Larger square bed
A 1,600 × 1,600 mm vacuum bed nests larger lay-ups and full bag panels in one pass.
Fast, accurate machine cutting
1,800 mm/s knife speed and ±0.1 mm accuracy keep yield high on patterned uppers, linings and bag panels.

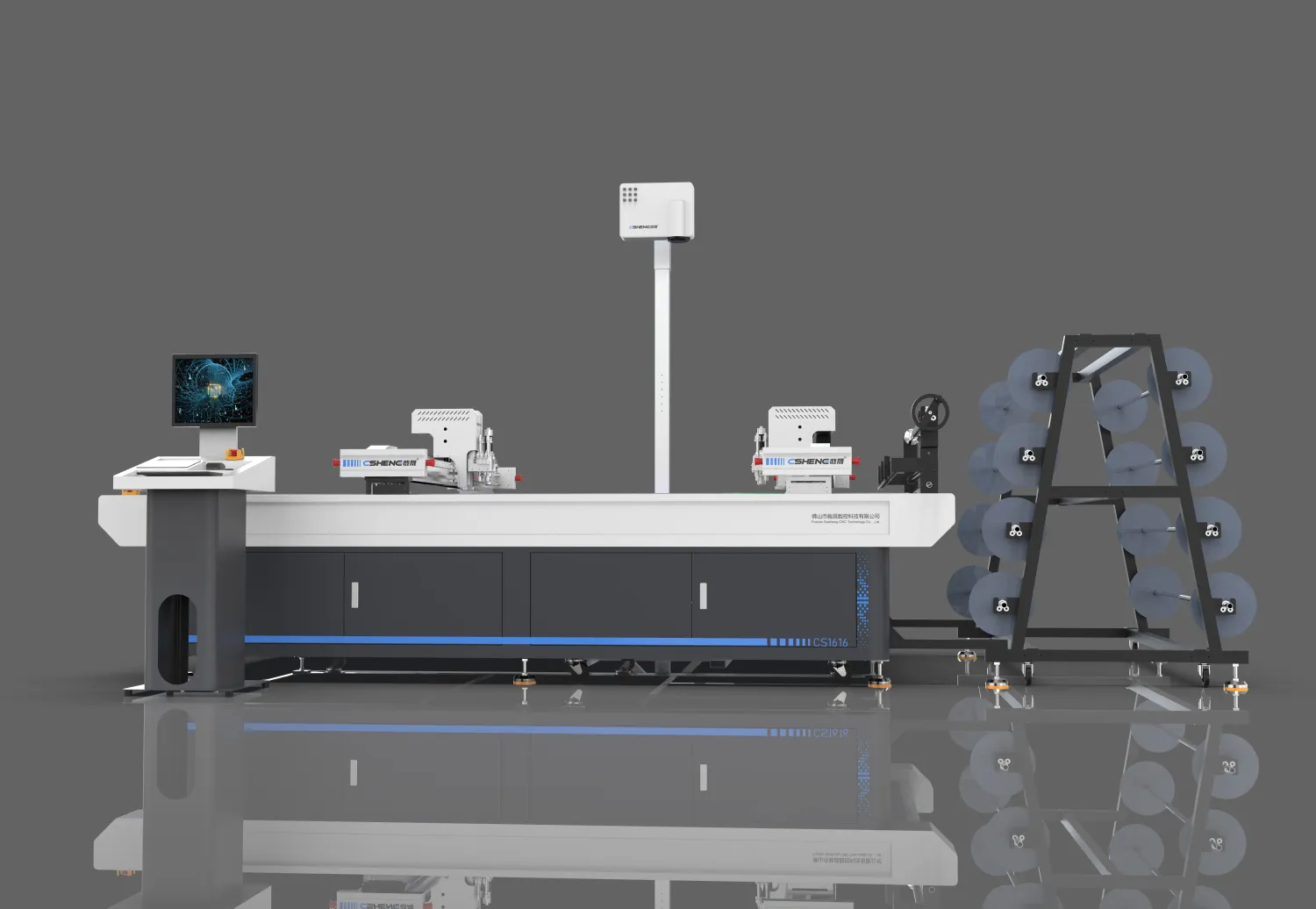

See the Footwear 1616 up close
Tap any photo to enlarge. Configurations, working width and options vary by model — talk to an engineer for the build that fits your line.
Where Footwear 1616 runs
Industries that pair with this system in production. Tap a card to see the full workflow and the favorable line-up that backs it.
Built for the cutting room
- Cutting area
- 1,600 × 1,600 mm
- Heads
- Dual-head asynchronous
- Max running speed
- Up to 1,800 mm/s (material- and pattern-dependent)
- Max cut thickness
- 50 mm (customisable)
- Cut accuracy
- ±0.1 mm
- Drive system
- High-precision rack & pinion + linear guide
- Drive motor
- Imported servo motor & driver
- Adsorption
- Vacuum adsorption
- Interface
- Ethernet port
- Compatible files
- PLT · DXF and common formats
- Operating voltage
- AC 380 V
- Overall (W × L × H)
- 3,750 × 2,270 × 1,300 mm
- Weight
- 1,200 kg
